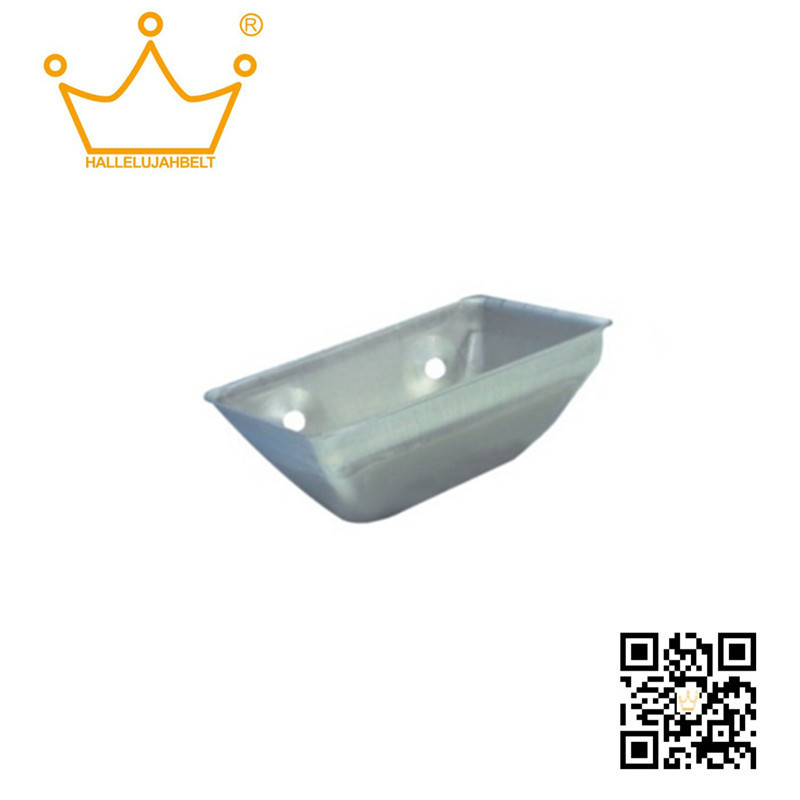

Deep Bottom Steel Elevator Bucket

Deep Bottom Steel Elevator Bucket

EXW Price: US $0.5 - 2 / Piece
Min.Order Quantity: 100 PCS
Supply Ability: 10000PCS per Day
Port: foshan/shzhen/guangzhou
Payment Terms: Trade assurace,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Holy Bible

A tithe of everything from the land, whether grain from the soil or fruit from the trees, belongs to the LORD;it is holy to the LORD.(Leviticus27:30)

Contact Us Categories: ,

HALLELUJAHBELT Deep Bottom Steel Elevator Bucket

With advanced coating machine and other excellent facilities, we are professionally producing PVC&PU,PE light conveyor belts, timing belt, flat belt, plastic modular belt, pvc elevator belt and elevator buckets, which are extremely suitable for light industry such as beer industry,robotics industry,ceramic industry,paper making industry, food industry, textile industry,bulk material handling industry etc.

Specification of Deep Bottom Steel Elevator Bucket:

Steel Elevator bucket: You Can Buy Various High Quality Steel Elevator bucket for Grain elevator from China Manufacturer
HALLELUJAHBELT company, and we are the best Steel Elevator bucket Supplier and Steel Elevator bucket for Grain elevator Manufacturer in China.

Material: Stainless Steel/Carbon Steel


  1. Deep bottom style to achieve the maximum individual capacity, while still maintaining the perfect fill and discharge characteristics of the original S type steel elevator bucket.
  2. Monobloc pressed seamless construction. The Smooth inner and outer surface finish, assist with a cleaner discharge of products.
  3. Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
  4. Well suited to high temperature applications, or where heavy products or sharp products are likely to be elevated.
  5. High quality hallelujahbelt Steel Elevator Bucket
  6. keyword: Steel Elevator Bucket
  7. Customize: Available

Using Recommendations

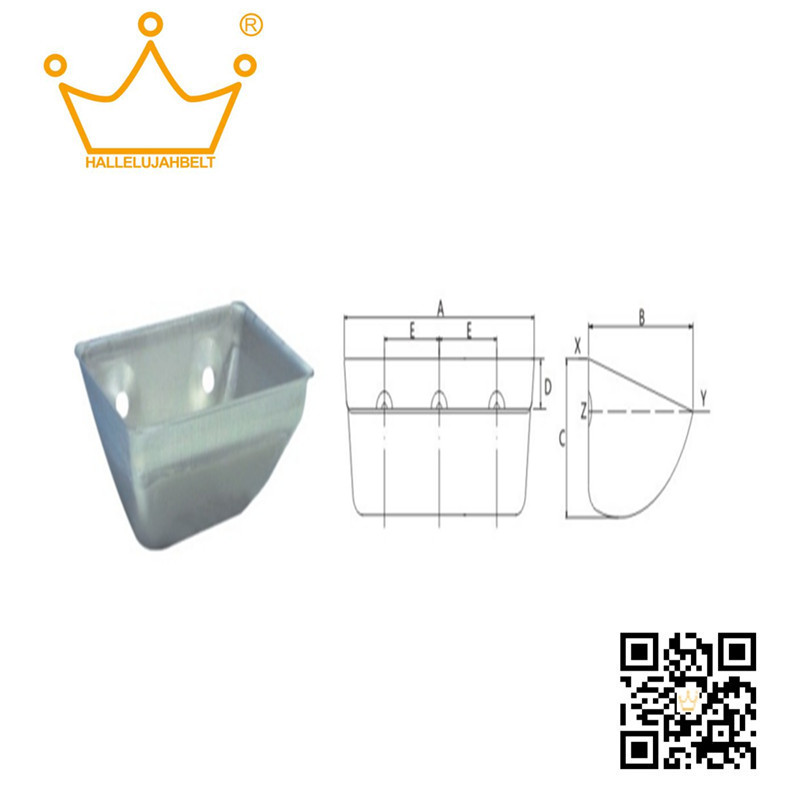

  • a)  Minimum bucket spacing: bucket projection “B” or “B”-20mm
  •  b) For engineering purpose, we recommend use“(Z-Y) + 10% ” as usable capacity.
  •  c) Special thickness is available on request.

Parameters for HALLELUJAHBELT Deep Bottem Elevator Bucket for Bucket elevator

Elevator Buckets Type: 1.D type Elevator Bucket  2.S type Elevator Bucket 3.DS type Elevator Bucket 4.DQ type Elevator Bucket 5.DM type Elevator Bucket(Rice Milling Bucket) 6.DG type Elevator Bucket 7.DH type Elevator Bucket(Drying Bucket) 8.DW type Elevator Bucket 9.DL type Elevator Bucket 10. Steel Elevator Bucket 11.HL Type Inductive Elevator Bucket

Technical Specifications:

1.How to choose elevator bucket type?

  •           a)Elevator line speed ≤2.5m/s,gravity discharge and mixed discharge—-Recommend D type or DS type(Deep bottom)
  •           b)Elevator line speed ≤3.5m/s,high speed centrifugal discharge—-Recommend DQ type(Shallow bottom)

2.Measure an elevator bucket & product usage recommendations

elevator-buckets1Note :

  1.  AA type bucket sizes are based on Nylon. All other type of bucket sizes are based on HDPE. Nylon and PUbucket size are approximately 2% larger than HDPE material bucket.
  2.  Mounting hole dimensions of DM, EU type bucket are strictly according to our size tables, and we can customize mounting holes for all other types of buckets.
  3.  Recommended bucket spacing for DM type bucket is C+2mm; all other bucket types are C+10mm. Actual spacing may adjust then.
  4. For engineering purposes, HALLELUJAHBELT recommends using Water Level + 10% for applicable designing capacity.

3. Elevator bucket material options

  1. HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
  2. Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
  3. UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
  4. PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
  5. Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
  6. Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.
