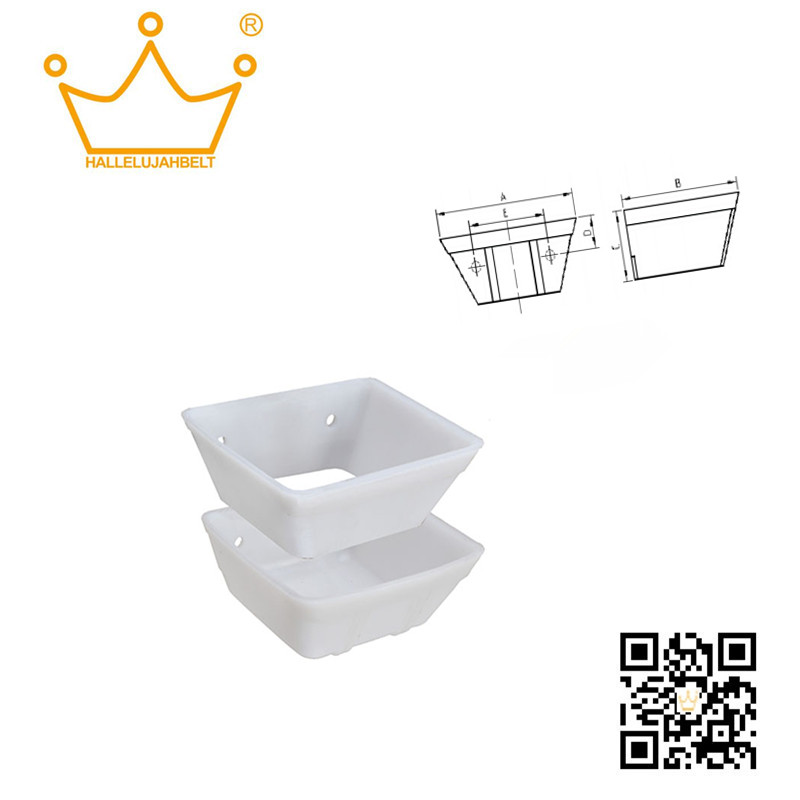

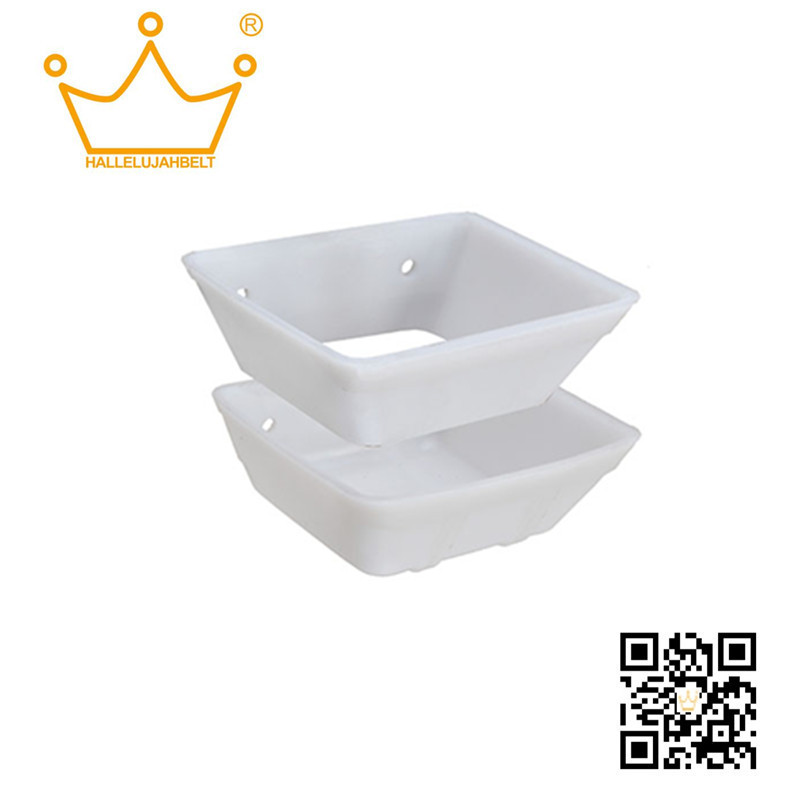

DW Type Elevator Bucket

DW Type Elevator Bucket

EXW Price: US $0.5 - 2 / Piece
Min.Order Quantity: 100 PCS
Supply Ability: 10000PCS per Day
Port: foshan/shzhen/guangzhou
Payment Terms: Trade assurace,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Brand HALLELUJAHBELT


Holy Bible

A tithe of everything from the land, whether grain from the soil or fruit from the trees, belongs to the LORD;it is holy to the LORD.(Leviticus27:30)

Contact Us Categories: ,

HALLELUJAHBELT DW Type Elevator Bucket

With advanced coating machine and other excellent facilities, we are professionally producing PVC&PU,PE light conveyor belts, timing belt, flat belt, plastic modular belt, pvc elevator belt and plastic elevator buckets, which are extremely suitable for light industry such as beer industry,robotics industry,ceramic industry,paper making industry, food industry, textile industry,bulk material handling industry etc.

Specification of DW Type Elevator Bucket:

Elevator bucket: You Can Buy Various High Quality DW type Elevator Bucket for Grain elevator from China Manufacturer
HALLELUJAHBELT company, and we are the best plastic elevator bucket Supplier and DW type Elevator Bucket for Grain elevator Manufacturer in China.

Material: HDPE/NYLON/UHMWPE/PU

Features:

  1. Well suited to agricultural applications such as drying of rice, seeds and grains as well as any other products that have to be dried/treated for further processing
  2. Ideal for handling grains, feeds, fertilizers, seeds, salt and chemicals, etc
  3. High impact, abrasion resistance, no-corrosion, smooth surface, FDA Food proved
  4. High quality hallelujahbelt elevator bucket
  5. keyword:DW type Elevator Bucket
  6. Customize: Available

Using Recommendations

  •  a)Minimum bucket spacing: Bucket height “C” +1mm in the same group; Bucket spacing between the groups= Bucket Projection“B”- Bucket Depth “C” +25mm
  •  b) For engineering purposes, we recommend using “L” for usable capacity
  • c)Mounting holes can be customized on request

Parameters for HALLELUJAHBELT DW type Elevator Bucket for Grain elevator

Elevator Buckets Type: 1.D type Elevator Bucket  2.S type Elevator Bucket 3.DS type Elevator Bucket 4.DQ type Elevator Bucket 5.DM type Elevator Bucket 6.DG type Elevator Bucket 7.DH type Elevator Bucket 8.DW type Elevator Bucket 9.DL type Elevator Bucket 10. Steel Elevator Bucket

Technical Specifications:

1.How to Choose Elevator Bucket Type?

  •           a)Elevator line speed ≤2.5m/s,gravity discharge and mixed discharge—-Recommend D type or DS type(Deep bottom)
  •           b)Elevator line speed ≤3.5m/s,high speed centrifugal discharge—-Recommend DQ type(Shallow bottom)

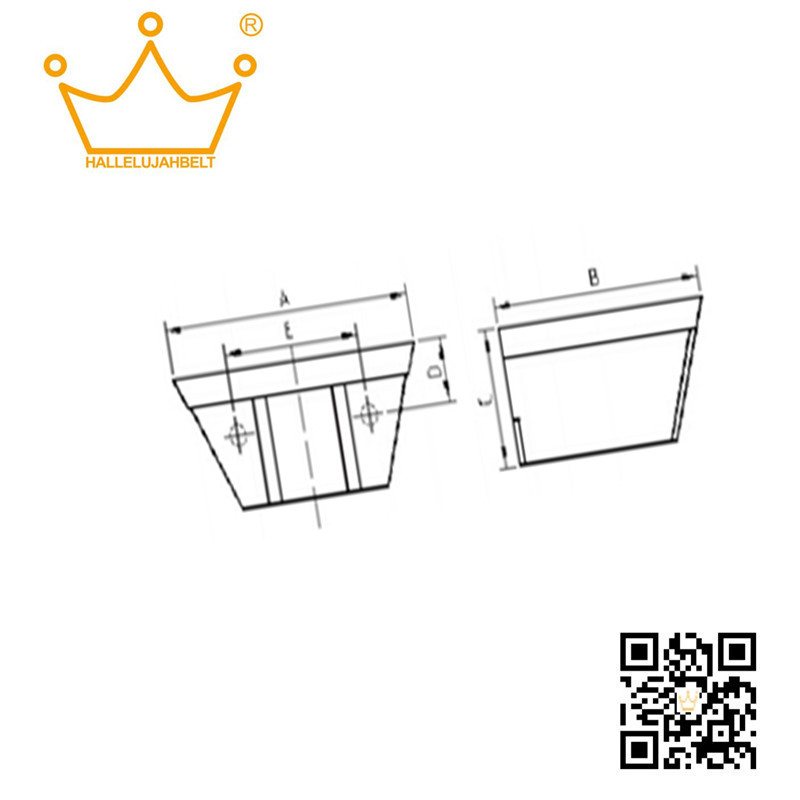

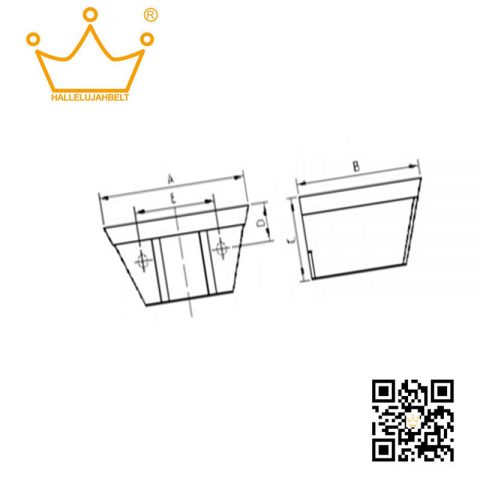

2.Measure an Elevator Bucket & Product Usage Recommendationselevator-buckets1Note :

  1.  AA type bucket sizes are based on Nylon. All other type of bucket sizes are based on HDPE. Nylon and PUbucket size are approximately 2% larger than HDPE material bucket.
  2.  Mounting hole dimensions of DM, EU type bucket are strictly according to our size tables, and we can customize mounting holes for all other types of buckets.
  3.  Recommended bucket spacing for DM type bucket is C+2mm; all other bucket types are C+10mm. Actual spacing may adjust then.
  4. For engineering purposes, HALLELUJAHBELT recommends using Water Level + 10% for applicable designing capacity.

  3.Eelvator Bucket Material Options

  1. HDPE: Tough and lexible, suitable for handling grains, foodstuffs, and other products with no sharp edges and material that has a bulk density of less than1g/cm³ .
  2. Nylon: High impact and abrasion resistance, better heat resistance and are well suited for handling hot, abrasive and sticky products.
  3. UHMWPE: Extremely abrasion resistance, corrosion resistant, impact absorbing properties, low temperature resistant, sanitary (FDA approved), Non-caking and sticking, now water absorption, light weight properties.Higher cost performance products.
  4. PU: Extremely abrasion resistance, tough and lexible, and are suitable for handling sharp, cutting and sticky products.
  5. Mild Steel: General purpose, long life, well suited to agricultural and industrial products.
  6. Stainless Steel: Food grade, corrosive resistance, suitable for food and high temperature applications.

COMING SOON ……………..  THANK YOUR PATIENCE
