Belt Fasteners HA4. HA5

Belt Fasteners HA4. HA5

EXW Price: US $0.5 - 2 / Piece
Min.Order Quantity: 100 PCS
Supply Ability: 10000PCS per Day
Port: foshan/shzhen/guangzhou
Payment Terms: Trade assurace,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Brand HALLELUJAHBELT


Holy Bible

A tithe of everything from the land, whether grain from the soil or fruit from the trees, belongs to the LORD;it is holy to the LORD.(Leviticus27:30)

Contact Us Categories: ,

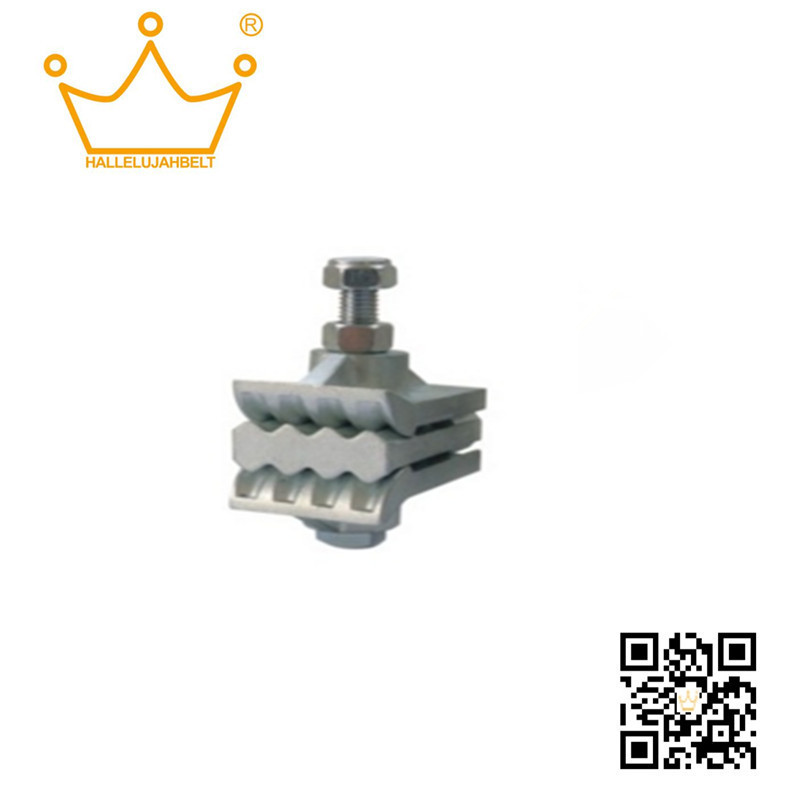

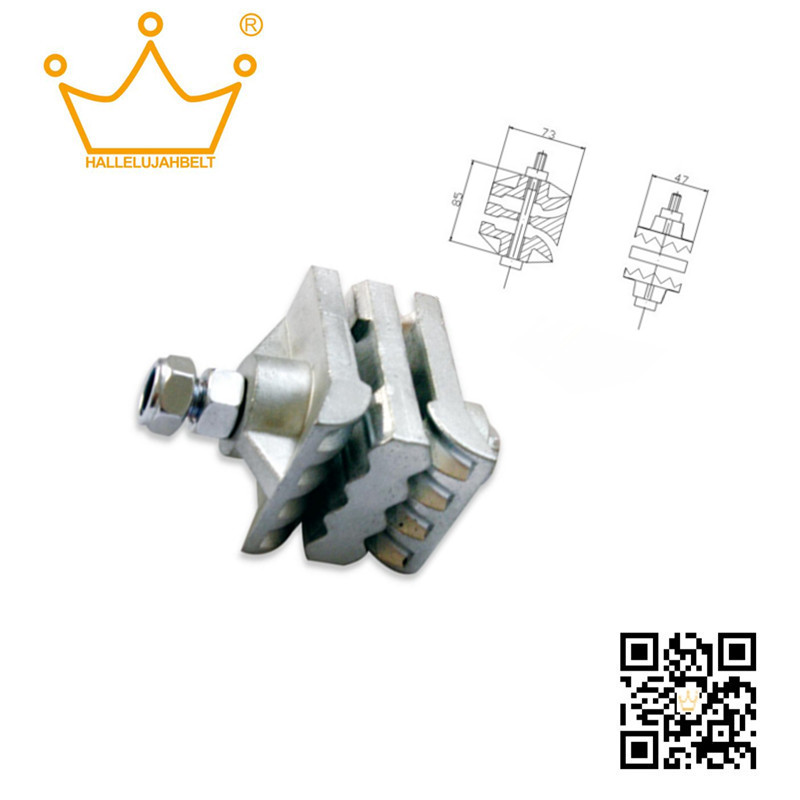

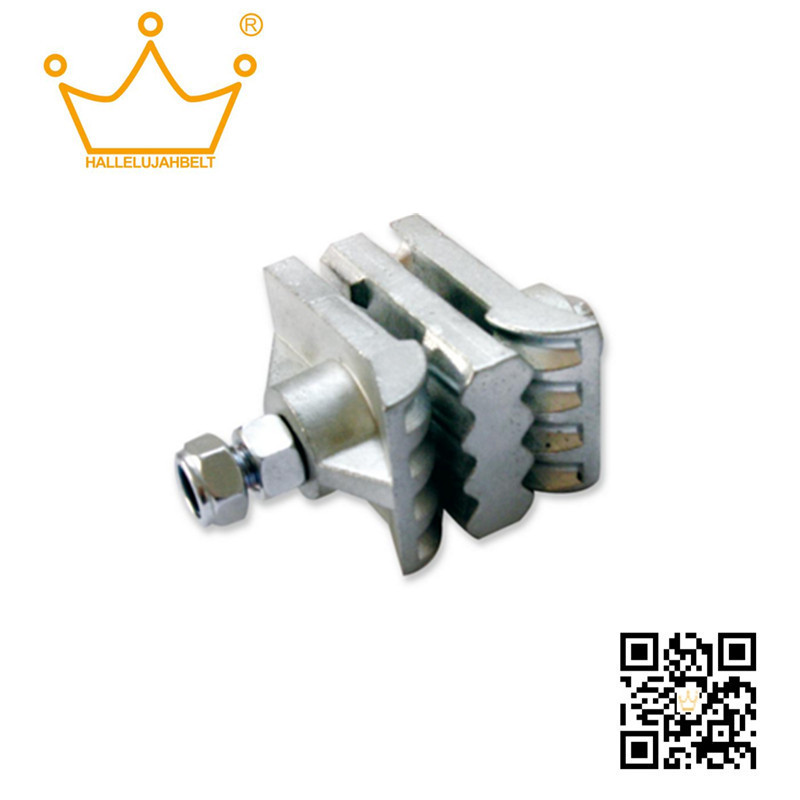

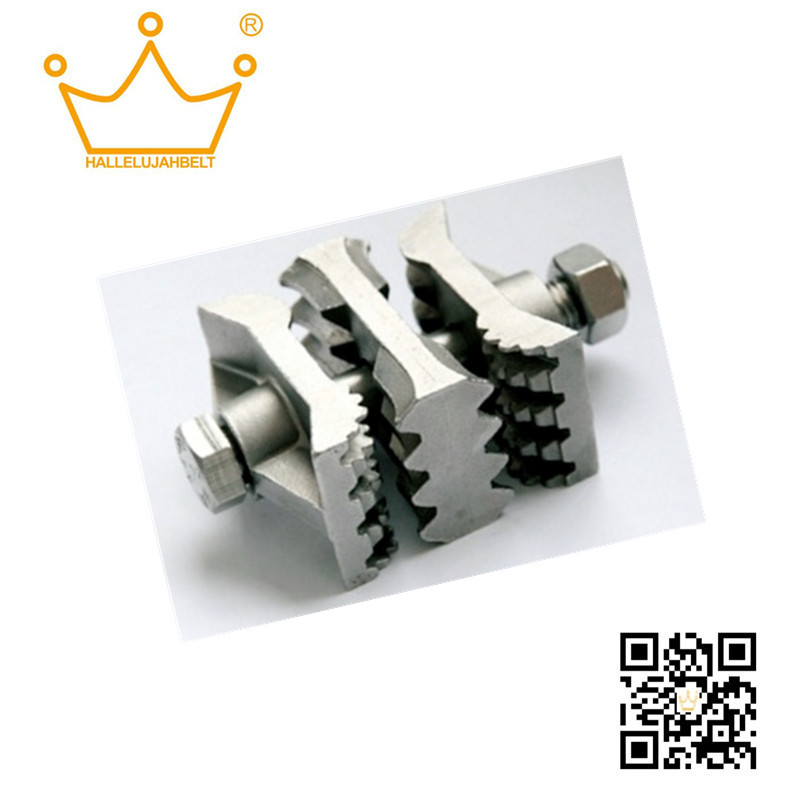

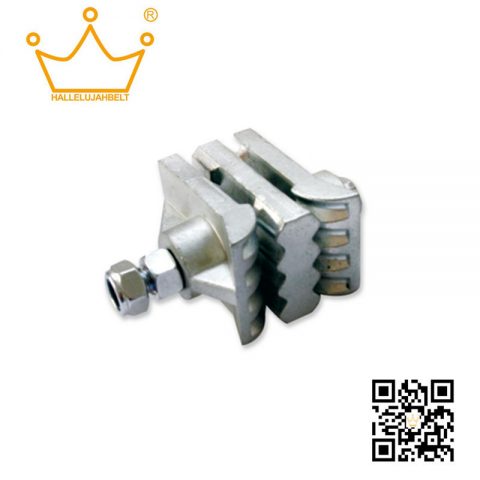

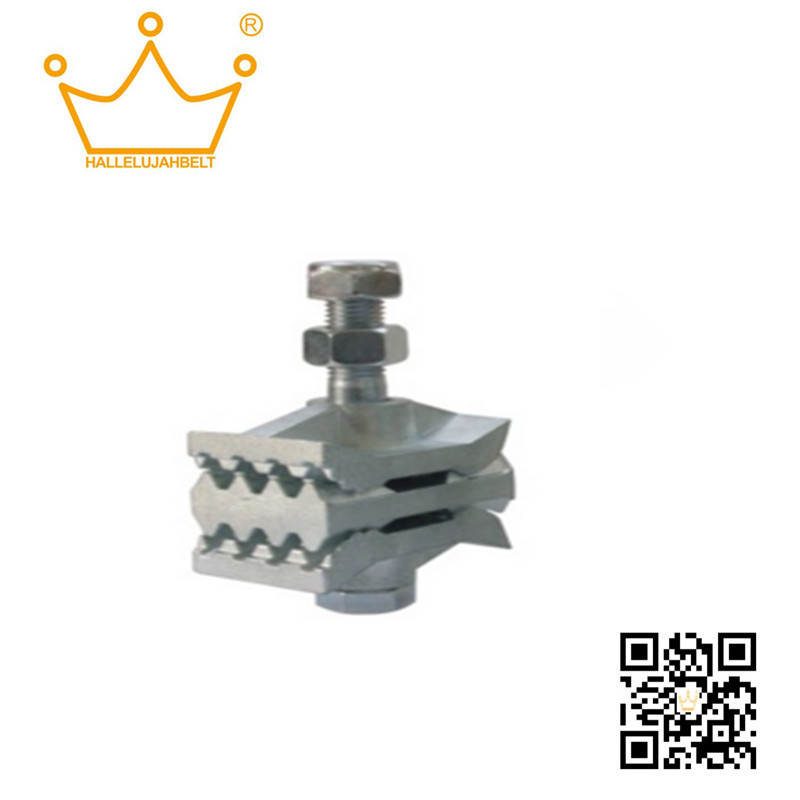

HALLELUJAHBELT Belt Fasteners HA4. HA5

With advanced coating machine and other excellent facilities, we are professionally producing PVC&PU,PE light conveyor belts, timing belt, flat belt, plastic modular belt, pvc elevator belt and elevator buckets, which are extremely suitable for light industry such as beer industry,robotics industry,ceramic industry,paper making industry, food industry, textile industry,bulk material handling industry etc.

Specification of Belt Fasteners:

Belt Fasteners: You Can Buy Various High Quality Belt Fasteners for bucket elevator from China Manufacturer
HALLELUJAHBELT company, and we are the best Belt Fasteners Supplier and Belt Fasteners for Grain elevator Manufacturer in China.

Material: Carbon Steel

Features of Type HA4 HA5

  1.  Its made by three special mechanical parts with higher clamp strength
  2. Precision casting ,good dimensional uniformity
  3. Materials include cast steel(zinc plated) and stainless steel.
  4. Equipped with the locknut which prevents from loosing in the operation
  5. High quality Belt Clamp Fasteners
  6. keyword: Belt Fasteners
  7. Customize: Available

Strength:

1. Splice Type and Belt Fastener Application

  •           a)
  •              b)
  • c)

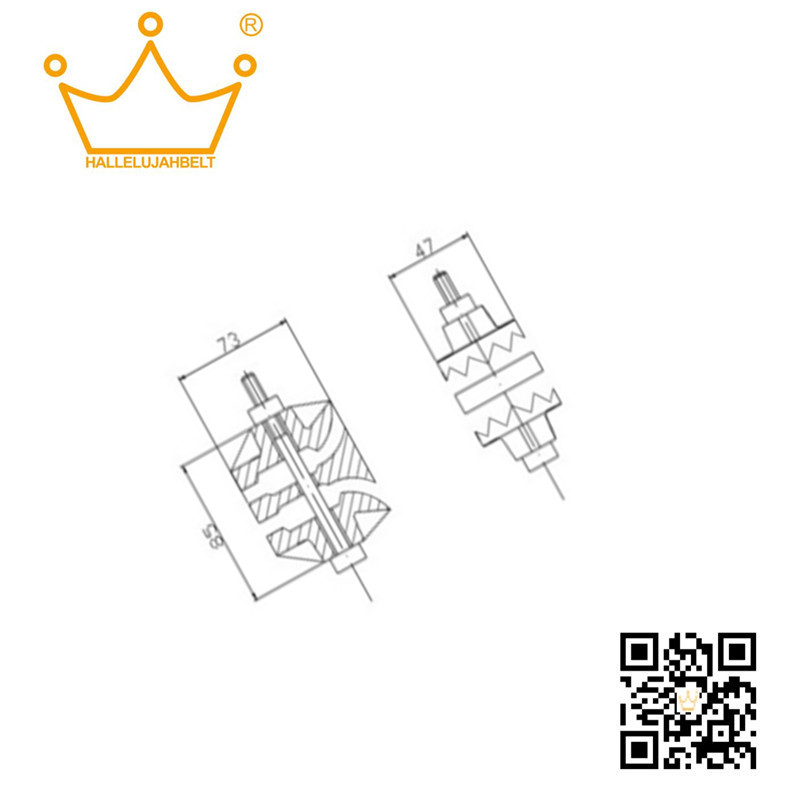

2. Installation and selection of belt clamp:
Note :

  1.  Choosing proper belt clamp style and quantity based on tensile strength and width of belt.
  2.  Requested belt length for belt clamp installation are respectively (HA1=174mm, HA2=186mm, HA4=214mm, HA5=220mm) , the proper total elevator belt length = elevator perimeter + proper length of belt clamp installation.
  3. Installation hole position: installation hole center line is (HA1=56mm, HA2=59mm, HA4=76mm, HA5=75mm) from two end of belt, the said line should be upright to belt end to make sure belt running properly.

3.The method of installation

  1.  Elevator belt joint
  2. Force analysis and comparsion date sheet(based on the cut edged elevator belt with belt width 300mm and tensile strength 800kn/m per unite)

COMING SOON ……………..  THANK YOUR PATIENCE
